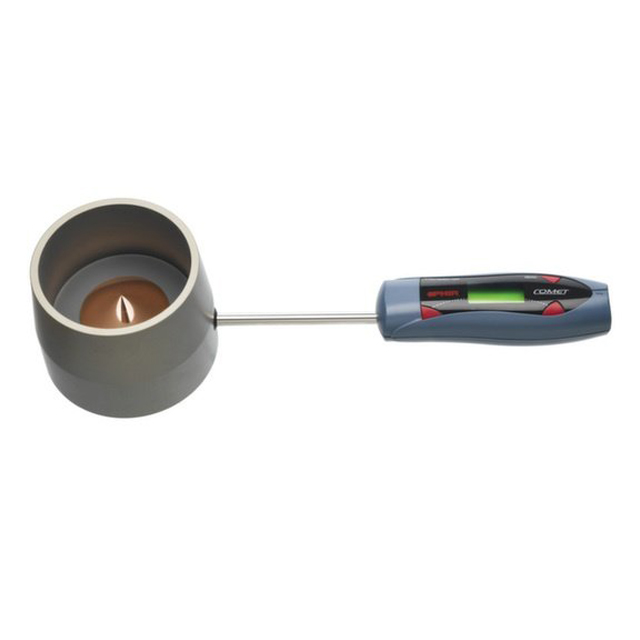

The Comet 10K is a portable power puck laser sensor with a 100mm aperture. It can measure power from 200W to 10kW by sampling a 20s exposure of laser power. It has a broadband coating and is calibrated for 0.98 – 1.07μm and 10.6μm.

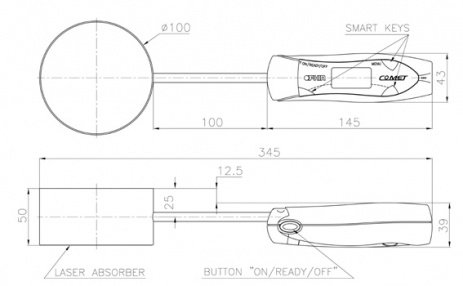

Comet 10K Drawing
| Absorber Type | N.A. |
| Aperture | ?55mm |
| Spectral Range | 0.98-1.07μm and 10.6μm |
| Power Range | 200W-10,000W |
| Energy Range | N.A. |
| Backscattered Power | N.A. |
| Dimensions | 355 L x 87 W x 110 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 2kW/cm2 |
| Response Time | N.A. |
| Max Energy Density (for <100ns) | 1J/cm2 |
| Max Energy Density (for 2ms) | 45J/cm2 |
| Max Average Power | 10kW |
| BeamTrack Functions | N.A. |
