Datasheet User's Manual

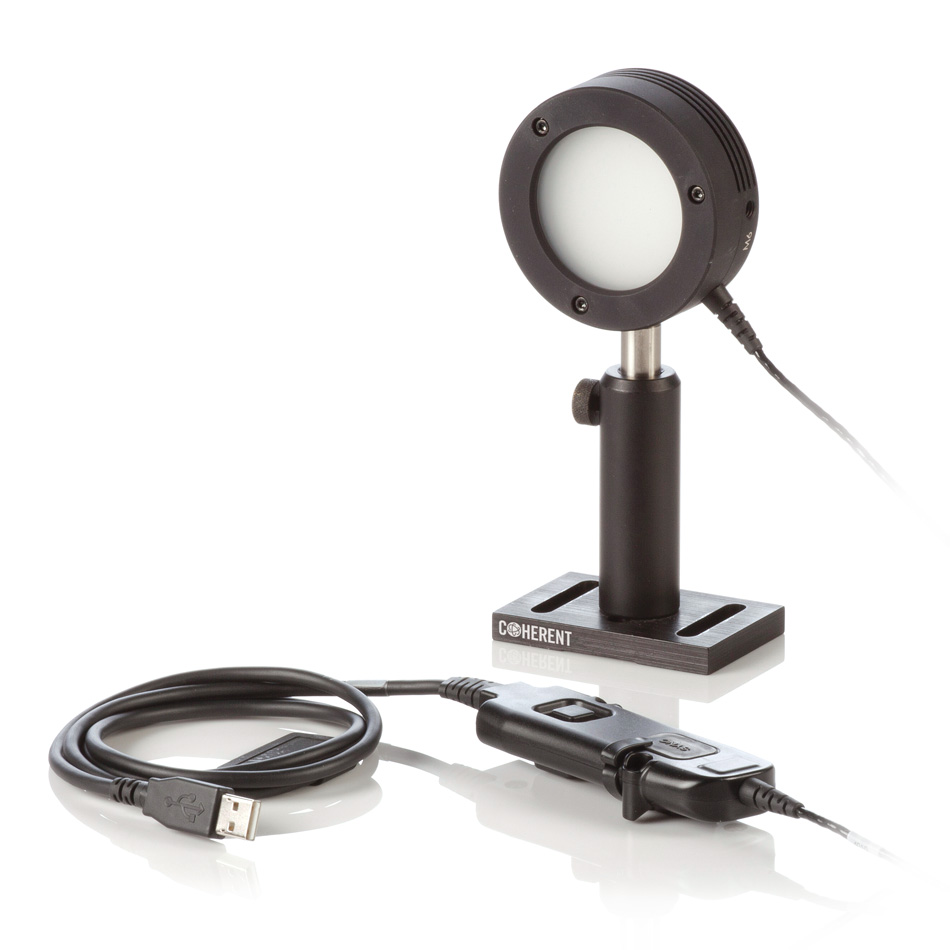

The J-50MB-IR energy sensor is specifically design for high energy and high peak power Erbium and Holmium medical lasers. This sensor is like the J-50MB-YAG, but is designed to operate further in the infrared.
The EnergyMax-USB J-50MB-IR energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1155722) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 3.2 mJ to 3J at up to 30 pps. Direct USB interface.
Key Features:
500 nm to 3.0 μm spectral range
35 mm diameter active area
3.2 mJ to 3J energy range
30 pps repetition rate operation
Direct USB interface
ISO 17025 accredited
Specifications
