Datasheet

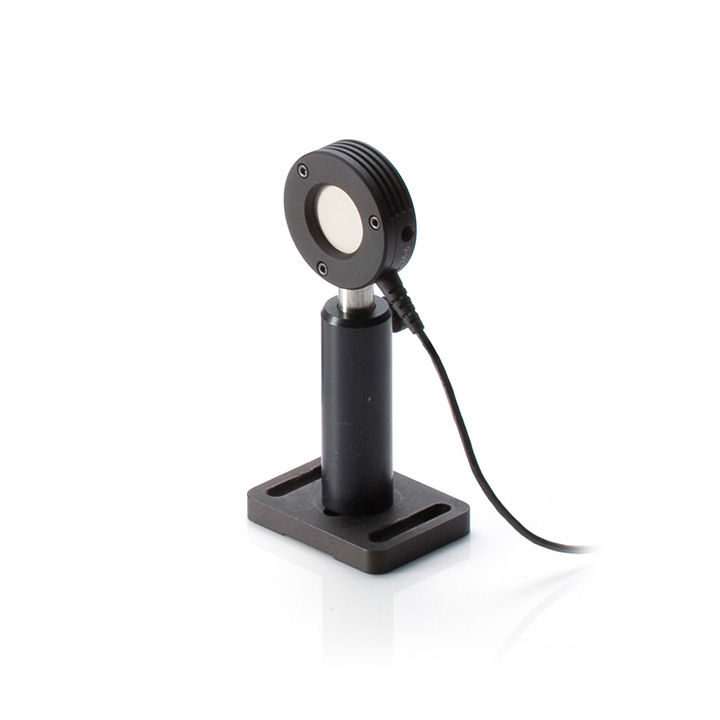

This J-25MUV-248 energy sensor incorporates the MaxUV coating and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 193 nm and includes spectral compensation from 0.19 to 2.1 μm. It is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.
A USB-direct (PN 1191448) model is available.
A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Pyroelectric energy sensor with MaxUV coating for measuring laser pulses from 50 μJ to 100 mJ at up to 500 pps.
Key Features:
19 to 2.1 μm nm spectral range
25 mm active area diameter
125 μJ to 250 mJ energy range
500 pps repetition rate operation
ISO 17025 accredited
Specifications
