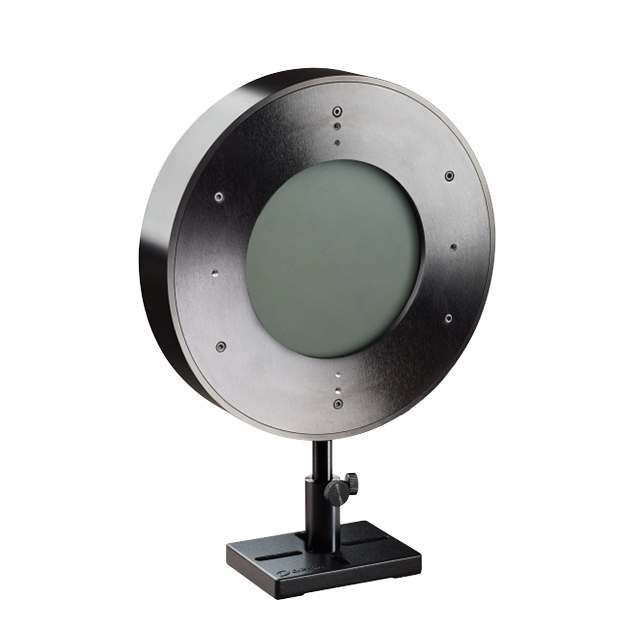

The L100(500)A-PF-120 is a convection or conduction cooled thermal power/energy laser measurement sensor with the very large aperture of 120mm.It can measure power from 1W to 500W and energy from 6J to 6000J. It has the PF volume absorber and covers the spectral range from 0.15 to 20μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
L100(500)A-PF-120 Drawing
| Absorber Type | PF volume absorber |
| Aperture | ?120mm |
| Spectral Range | 0.15-20μm |
| Power Range | 1W-500W |
| Energy Range | 6J-6000J |
| Dimensions | ?200 W x 35 D (mm) |
| Max Pulse Energy | 6000J |
| Max Average Power Density | 2kW/cm2 |
| Response Time | 7 s |
| Max Energy Density (for <100ns) | 1.5J/cm2 |
| Max Energy Density (for 2ms) | 15J/cm2 |
| Max Average Power | 500W |
