L40(150)A-IPL 7Z02771 Sensor For Gel Measurements

Updated:2025-03-13

Brand：Ophir
Model：L40(150)A-IPL
Description: L40(150)A-IPL sensor for gel measurements. This sensor is specially designed for measuring pulses from gel coupled IPL dermatological sources. It allows a widely divergent gel coupled beam to go throu
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L40(150)A-IPL 7Z02771 Sensor For Gel Measurements Description：

L40(150)A-IPL sensor for gel measurements. This sensor is specially designed for measuring pulses from gel coupled IPL dermatological sources. It allows a widely divergent gel coupled beam to go through the unit without back reflections. The sensor has a 22x22mm aperture that can also sample larger sized sources and can measure energy from 100mJ to 2000J. It has the high damage threshold LP2 absorber and covers the spectral range from 0.5 to 1.3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

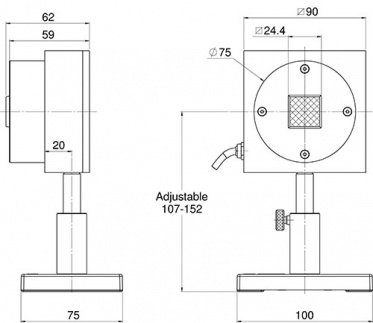

L40(150)A-IPL 7Z02771 Sensor For Gel Measurements Drawing：

L40(150)A-IPL Drawing

L40(150)A-IPL 7Z02771 Sensor For Gel Measurements Specifications：

Absorber Type	LP2 + pyramid coupling
Aperture	22x22mm
Spectral Range	0.5-1.3μm
Power Range	N.A.
Energy Range	100mJ-2,000J
Dimensions	90 L x 90 W x 62 D (mm)
Max Pulse Energy	2,000J
Max Average Power Density	N.A.
Response Time	N.A.
Max Energy(for <100ns)	1J
Max Energy(for 2ms)	1,300J
Max Average Power	N.A.
