The PE25BF-C is a high damage threshold pyroelectric energy meter with a 24mm aperture. It can measure energies from 60μJ up to 10J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

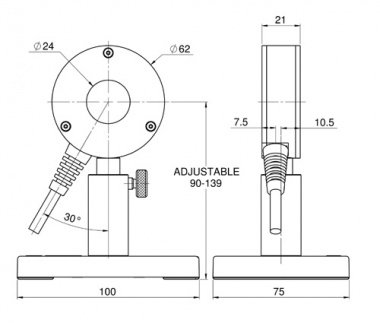

PE25BF-C Drawing
| Absorber Type | BF |
| Aperture | ?24mm |
| Spectral Range | 0.15-3μm, 10.6μm |
| Energy Range | 60μJ-10J |
| Maximum Frequency | 250Hz |
| Dimensions | ?62 W x 21 D (mm) |
| Max Pulse Energy | 10J |
| Max Average Power Density | 20W/cm2 |
| Max Pulse Width | 20 ms |
| Damage Threshold(for <100ns) | 0.8 J/cm2 |
| Damage Threshold(for 2ms) | 10 J/cm2 |
| Max Average Power | 15W |
