User's Manual

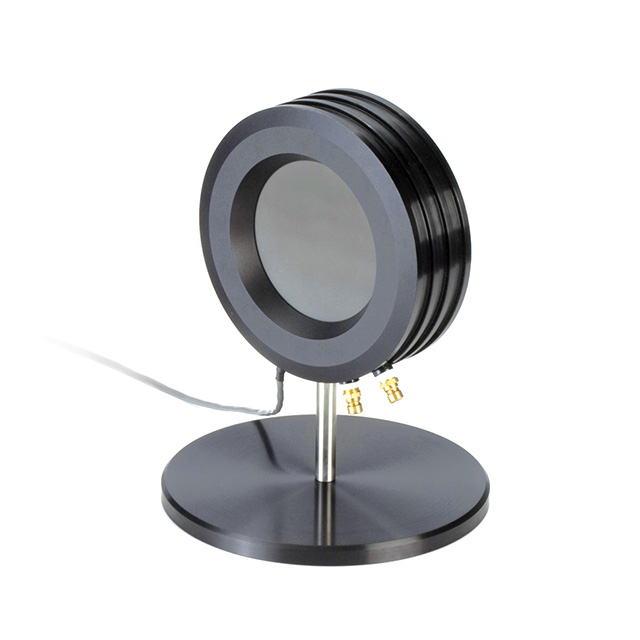

This PowerMax-RS PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1152086) model is available.
The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.
Large area, water-cooled kW thermopile sensor with UV coating for measuring lasers between 50W and 1000W. Direct RS232 interface.
Key Features:
50W to 1000W range
100 mm diameter active area
UV coating
15 to 1 μm spectral range
Water-cooled
Direct RS232 interface
ISO 17025 accredited
Specifications
