User's Manual

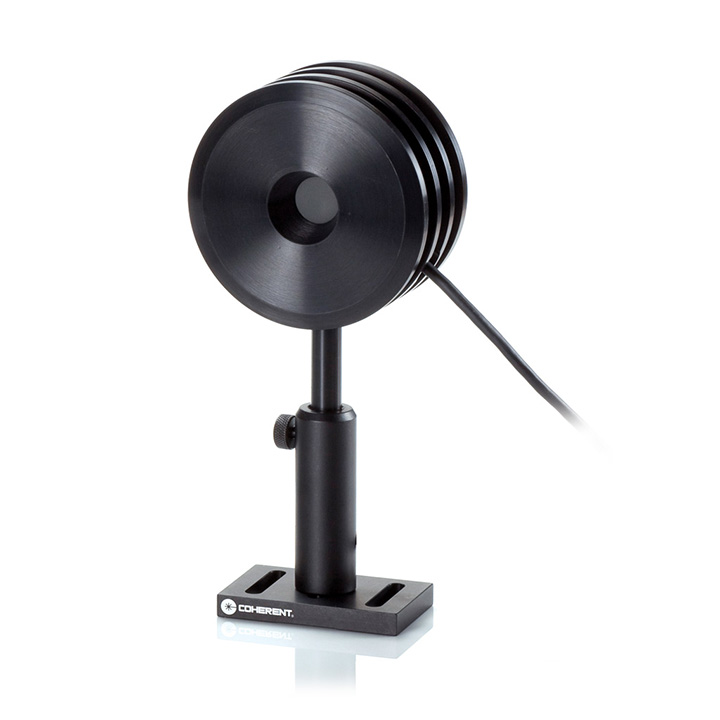

This PowerMax-USB PM30X sensor is a convectively cooled laser power sensor intended for measuring lasers up to 30W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098498) is available.
Convectively cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 10 mW and 30W. Direct USB interface.
Key Features:
10 mW to 30W range
19 mm diameter active area
UV coating
0.15 to 1 μm spectral range
Convective air-cooled
Direct USB interface
ISO 17025 accredited
