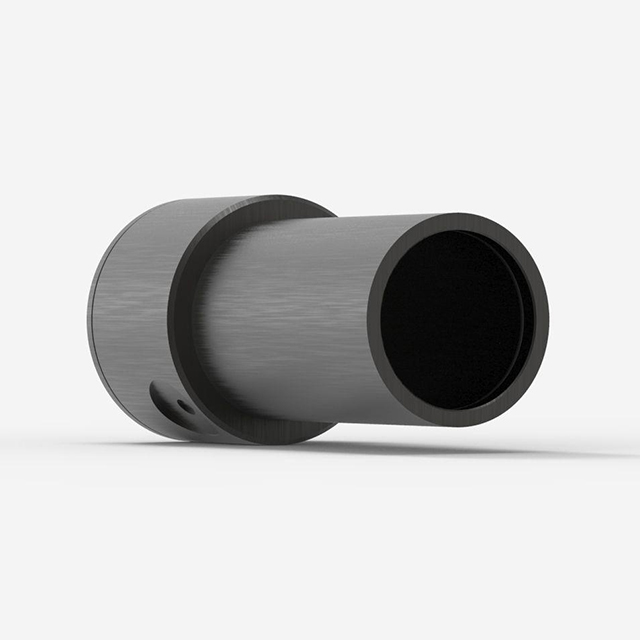

Gentec-EO UM9B-BL-L-D0 Pyroelectric Detector

Updated:2025-03-13

Brand: Gentec-EO
Model: UM9B-BL-L-D0
Description: Gentec-EO UM9B-BL-L-D0 Pyroelectric Detector for laser power measurement up to 200 μW.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Gentec-EO UM9B-BL-L-D0 Pyroelectric Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual UM-B User's Manual

Gentec-EO UM9B-BL-L-D0 Pyroelectric Detector for laser power measurement up to 200 μW.

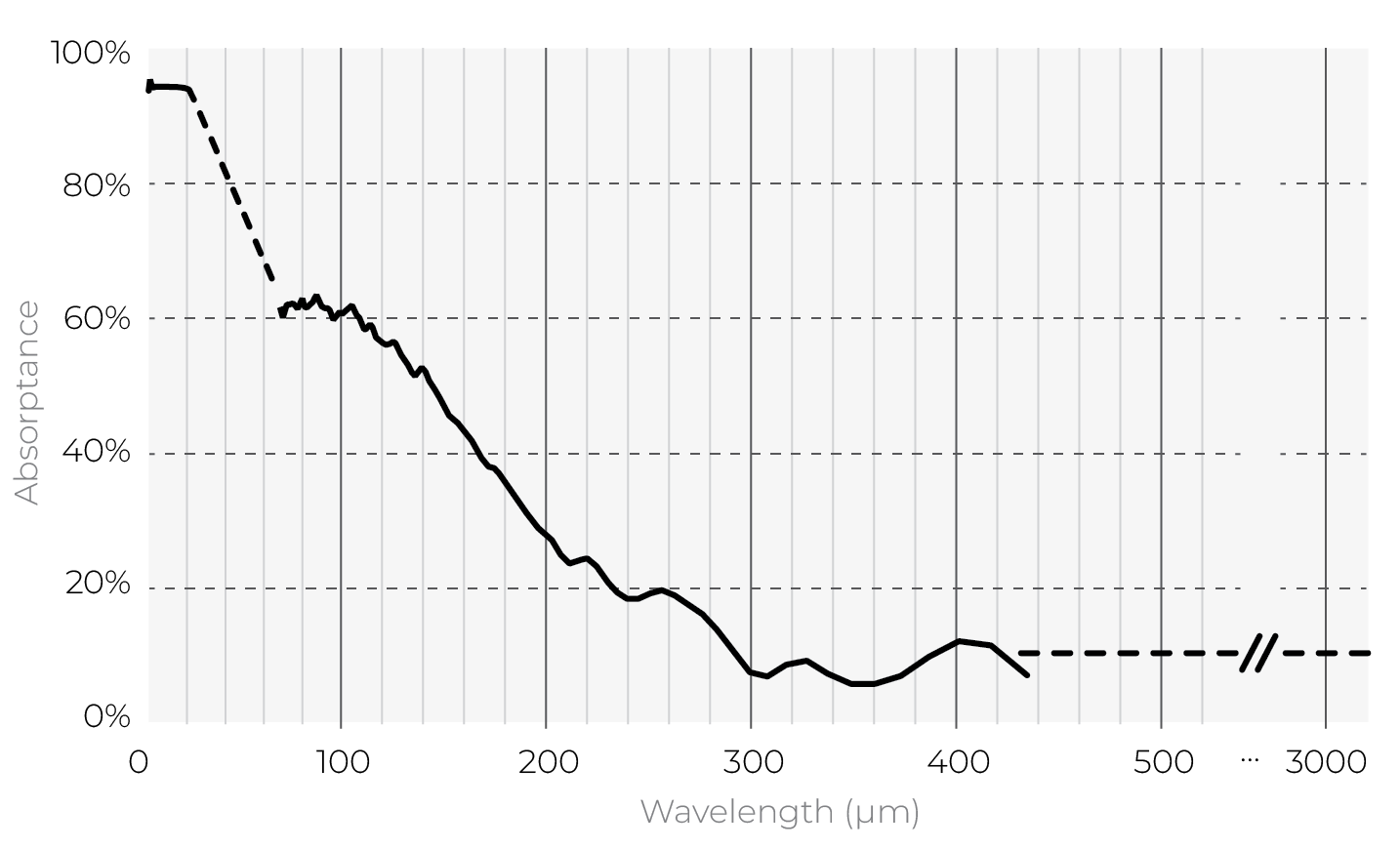

Measure low-power lasers at any wavelength with the BL absorber

The spectrally ultra-flat and broadband coating absorbs a very wide range of wavelengths. The very high absorptivity of our BL absorber guarantees a high sensitivity.

Can be used with broadband light sources

Wide dynamic range

Very low noise

Key Features

Very Low Noise Level

Noise levels of a photodetector, but with the large bandwidth of a pyroelectric

Very High Responsivity

Up to 20 000 V/W when using the analog power module (APM)

Very Large Bandwidth

From DUV to FIR thanks to pyroelectric technology

Smart Interface

Containing all the calibration data

Specifications

Measurement capabilities
Maximum average power (continuous)	200 μW
Noise equivalent power	5 nW
Spectral range	0.1 - 20 μm
Typical rise time	0.2 s
Typical power sensitivity	20000 mV/W
Power calibration uncertainty	±4 %
Chopper frequency	5 ± 1 Hz
Damage thresholds
Maximum average power density	50 mW/cm2
Physical characteristics
Aperture diameter	9 mm
Absorber	BL
Dimensions	38.1? X 79D mm
Weight	0.09 kg
