Datasheet Outline Drawing

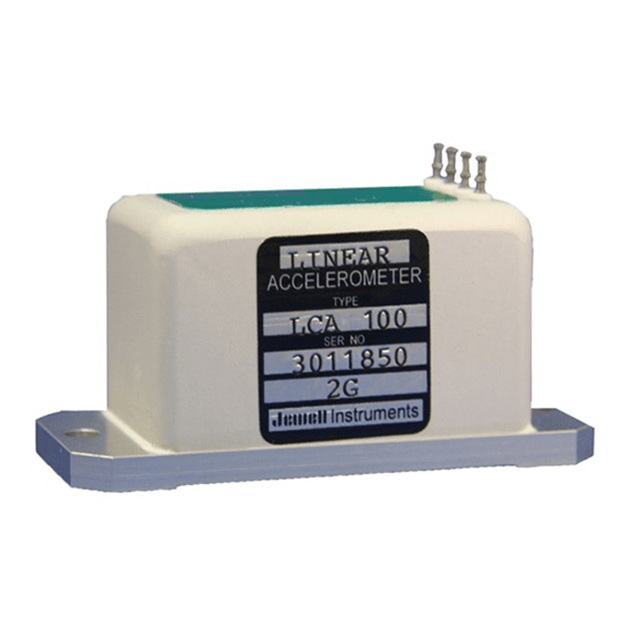

The Jewell LCA-100 Series Accelerometer is a general-purpose ±0.5g to ±5g device. These linear accelerometers are designed for industrial, commercial and aerospace sensing requirements.
Specifications
| Input Range (g) | ±0.5 | ±1.0 | ±2.0 | ±5.0 |
| Full Range Output (VDC ±0.5%)1 | ±5.0 | ±5.0 | ±5.0 | ±5.0 |
| Scale Factor (Volts/g nominal) | 10.0 | 5.0 | 2.5 | 1.0 |
| Scale Factor Temperature Sensitivity (PPM/°C maximum) | 180 | 180 | 180 | 180 |
| Natural Frequency (Hz nominal)2 | 60 | 60 | 60 | 60 |
| Bandwidth (-3dB Hz nominal) | 60 | 60 | 60 | 60 |
| Output Axis Misalignment (° maximum) | 0.71 | 0.71 | 0.71 | 0.71 |
| Pendulous Axis Misalignment (° maximum) | 0.71 | 0.71 | 0.71 | 0.71 |
| Bias (g) | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Bias Temperature Sensitivity (μg/°C maximum) | 100 | 100 | 100 | 100 |
| Resolution & Threshold (μg maximum) | 10 | 10 | 10 | 10 |
| Number of Axes | 1 |
| Input Voltage Range (VDC) | ±12 to ±18 |
| Input Current (mA maximum) | 25 |
| Output Impedance (Ω nominal) | 100 |
| Noise (Vrms maximum) | 0.005 |
| Operating Temperature Range | -55 to +85 °C |
| Storage Temperature Range | -60 to +90 °C |
| Vibration (grms) | 0 |
| Shock | 100g, 0.011 sec, ? sine |
| Seal | MIL-STD-202, Mtd. 112 |
| Dimensions | 3.10 × 1.38 × 1.525 in |
| Features |
? Filtering Available ? Available in 28V Aircraft Input ? Connector or Pin Configuration ? 0.20% 10-year Scale Factor Stability ? Wide Bandwidths for Higher Range Applications |
| Applications |
? Aircraft Flight Controls ? Aircraft Fatigue Monitoring ? Train Performance Testing ? Aircraft Autopilot System Input ? Aircraft Winds-shear Detection ? Double Integrated Railcar Position ? Rail Automated Train Controls |
