Datasheet(CN) Datasheet(EN) User's Manual

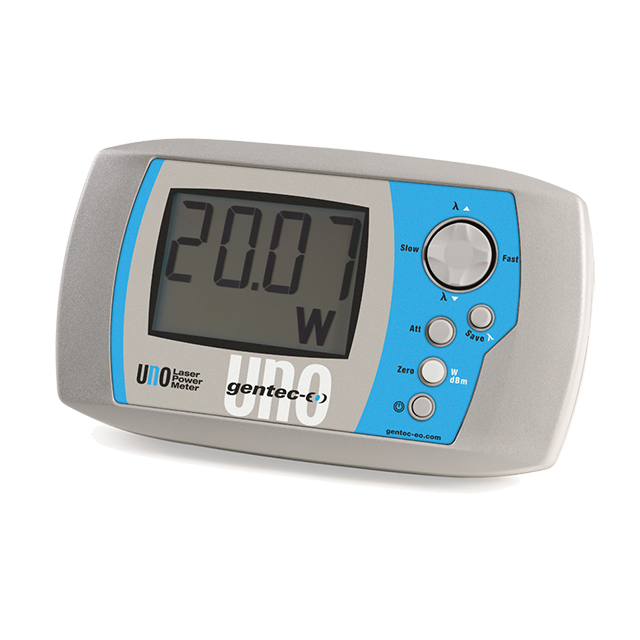

Gentec-EO UNO Economical display device for power measurement. Single-channel.
Key Features
Reads ALL Power Detectors
Thermopiles and optical detectors of the PH100 & PH20 series
Large LCD Display
76 x 57 mm
32 mm digits
Unique Ergonomic Design
Great for both handheld and tabletop use
Accurate
24 bit A/D converter for high resolution measurements
Single-Button Navigation
Direct access and long press access to all the functions
EXtremely Low Consumption
Lasts 670 hours with 4 AA alkaline batteries
Specifications
| Controller and GUI specifications | |
| 數字顯示尺寸 | 76 x 57 mm LCD |
| Digital display size | Real time |
| Digit height | 32 mm |
| External trigger | None |
| Battery type | 4 x AA Alkaline |
| Battery life | 670 hours with detector |
| External power supply | 9 VDC 1.66 A |
| Power meter specifications | |
| Digital resolution | 1 pW |
| Device accuracy | ±1 % |
| Physical characteristics | |
| Dimensions | 210W x 122H x 44D mm |
| Weight | 0.47 kg |
